Case study of straight wire drawing machine

Date:2021-05-31 Hits: Classification:Case

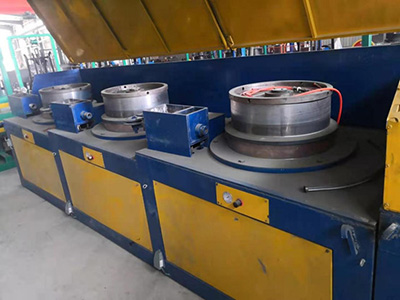

  • Case study of straight wire drawing machine图片1
  • Case study of straight wire drawing machine图片2

Main features: reliable, energy-saving, safe, convenient, low noise, efficient

Technical parameters:

1. Roll diameter: Φ 560mm;

2. Incoming diameter: Φ 6.5mm;

3. Outlet diameter: Φ 1.35mm;

4. Wire drawing speed: designed according to the principle of high speed radial load, low speed and heavy load;

5. The drawing direction is from left to right;

6. Drawing mode: spiral self descaling narrow slot water cooling on inner wall of drum; The outer ring is separately air-cooled;

7. The drum is made of cast steel (zg370-640) substrate, the working surface is sprayed with tungsten carbide material, the surface is polished before polishing, and the hardness is greater than or equal to hrc58;

8. The tuning rod is made of bearing steel with hardness no less than hrc58;

9. Adopt the form of two-stage series welding frame;

10. The primary and secondary belt drives are adopted for the main drive, and the bearings in the drum are Harbin, Wanzhou, Luoyang and Dalian metallurgical bearings;
